TCM Series Semi-auto Line with High Efficiency Steel Plate Edge Rounding TABLE R-ANGLE Chamfering Machine
Short Description:
TCM Series Edge Rounding Machine is kind of equipment for steel plate edge rounding /chamfering/de-burring. It is functional or option for single edge rounding or double sided rounding.
Products Description

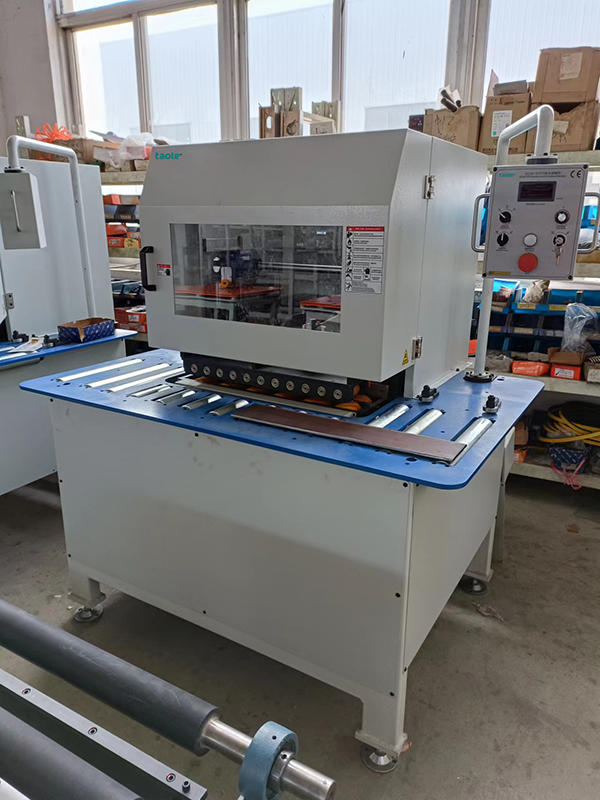

TCM Series Edge Rounding Machine is kind of equipment for steel plate edge rounding /chamfering/de-burring. It is functional or option for single edge rounding or double sided rounding. Mostly for Radius R2, R3,C2,C3.This Machine are widely used for carbon steel, stainless steel, aluminum steel ,alloy steel etc.Mainly applicated for Shipyard, construture industry for painting preparation to achieve a durable corrosion resistance.Edge rounding equipment from Taole Machine removes sharp metal edges, increasing worker and equipment safety as well as paint and coating adhesion.
Optional models as per sheet metal specifications shape & Size and metal job attribute.
Main Advantages
1. Stationary Machine Suitable for bulk processing, Mobile type and pass-type for large plate with high efficiency by multiple spindles.
2. Ballast Tank PSPC Standard.
3. Unique machine design request small work space only.
4. Cold cutting to avoid any Indentation and oxide layer . Using market standard milling head and carbide inserts
5. Radiu available for R2,R3, C2,C3 or more possible R2-R5
6. Wide working range, easy to adjust for edge chamfering
7. High working speed which estimated to be 2-4 m/min
Parameter Comparison Table
| Models | TCM-SR3-D |
| Power Suppy | AC 380V 50HZ |
| Total Power | 1900W& 0.5-0.8 Mpa |
| Spindle Speed | 2800r/min |
| Feed Speed | 0~4000mm/min |
| Clamp Thickness | 8~60mm |
| Clamp Width | ≥100mm |
| Clamp Length | ≥300mm |
| Bevel Width | R2/R3 |
| Cutter Diameter | 2 * Dia 60mm |
| Inserts QTY | 2 *3 pcs |
| Worktable Height | 800-860mm |
| Worktable Size | 1200*900mm |
Process Performance
