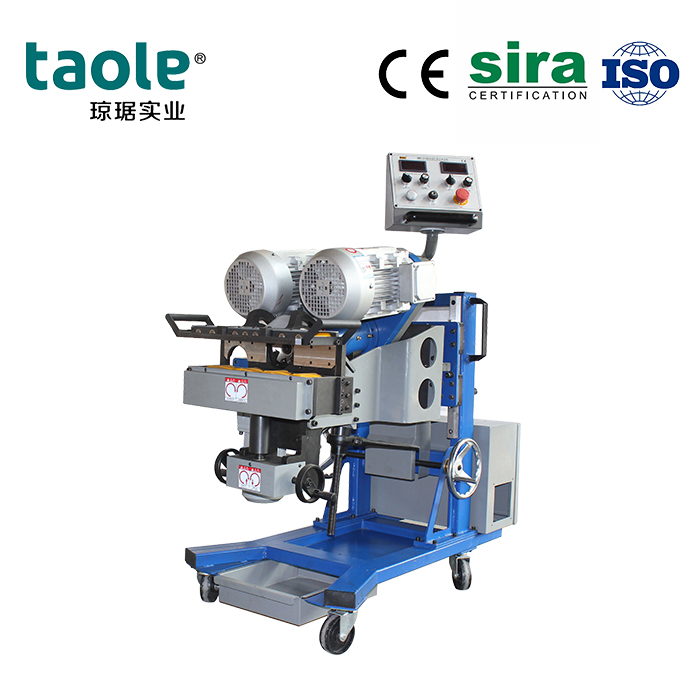

GMMA-80R Turnable double side beveling machine
Short Description:
GMMA-80R is a new model which is turnable for double side beveling. (Top bevel and down bevel by same machine).
It will slowlly taking over GMMA-60R with bigger working range and availabilities.
Clamping thickness: 6-80 mm
Bevel angel: 0- ± 60 degree adjustable
Bevel Width: 0-70mm
Double motor with high power for efficiency bevel cutting.
GMMA-80R double side beveling machine
GMMA–80R is a new model 2018 available to turn over for double side beveling.
Clamping thickness 6-80mm and bevel angel 0-60 degree adjustable. Singel bevel width 0-20mm and max bevel width could reach 70mm.
Specifications
| Model No. | GMMA-80R double side beveling machine |
| Power Supply | AC 380V 50HZ |
| Total Power | 4800W |
| Spindle Speed | 750-1050r/min |
| Feed Speed | 0-1500mm/min |
| Clamp Thickness | 6-80mm |
| Clamp Width | ＞100mm |
| Process Length | ＞300mm |
| Bevel angel | 0-±60 degree adjustable |
| Single Bevel Width | 0-20mm |
| Bevel Width | 0-70mm |
| Cutter Plate | 80mm |
| Cutter QTY | 6PCS |
| Worktable Height | 700-760mm |
| Travel Space | 800*800mm |
| Weight | N.W 325KGS G.W 385KGS |
| Packaging Size | 1200*750*1300mm |
Note: Standard Machine including 1pc cutter head + 2 set of Inserts + Tools in case + Manual Operation
