GMMA-60S Plate edge beveler

Short Description:

GMMA-60S plate edge beveler is kind of auto guiding beveling machine along with plate for plate edge milling , chamfering, clad removal against welding preperation.  Available for V/Y type bevel joint and Vertical milling at 0 degree. GMMA-60S for plate thickness 6-60mm, bevel angel 0-60 degree and max bevel width could reach 45mm.

  • Model No.: GMMA-60S
  • Plate Thickness: 6-60MM
  • Bevel Angel: 0-60 Degree
  • Bevel Width: 0-45MM
  • Brand Name: TAOLE
  • Place of Origin: Shanghai,China
  • Delivery Date: 7-15 days
  • Packaging: Wooden Case Pallet
  • Product Detail

    Product Tags

    GMMA-60S Plate edge beveler

    Metal plate edge beveling milling machine mainly to do bevel cutting or clad removal / clad stripping /edge chamfering on steel plates material like mild steel, stainless steel, aluminum steel,alloy titanium,hardox,duplex etc.It is widely used for welding industry for welding preperation.

    GMMA-60S plate edge beveler is a basic and economic model for plate thickness 6-60mm, bevel angel 0-60 degree.  Mainly  for  bevel joint  V/ Y type and vertical milling at 0 degree. Using Market standard milling heads diameter 63mm and miling inserts.

    Max bevel width could reach 45mm for basic bevel sizes against welding.

    Bevel Joint and Bevel Size reference for GMMA-60S plate edge beveler



    Parameters for GMMA-60S plate edge beveler


    Models GMMA-60S plate beveler
    Power Suppy AC 380V 50HZ
    Total Power 4520W
    Spindle Speed 1050r/min
    Feed Speed 0~1500mm/min
    Clamp Thickness 6~60mm
    Clamp Width >80mm
    Clamp Length >300mm
    Bevel Angel 0~60 degree
    Singel Bevel width 0-20mm
    Bevel Width 0-45mm
    Cutter Diameter Dia 63mm
    Inserts QTY 6 pcs
    Worktable Height 700-760mm
    Suggest Table Height 730mm
    Worktable Size 800*800mm
    Clamping Way Auto Clamping
    Wheel Size 4 Inch STD
    Machine Height Adjust Hydraulic
    Machine N.Weight 200 kgs
    Machine G Weight 255 kgs
    Wooden Case Size 800*690*1140mm

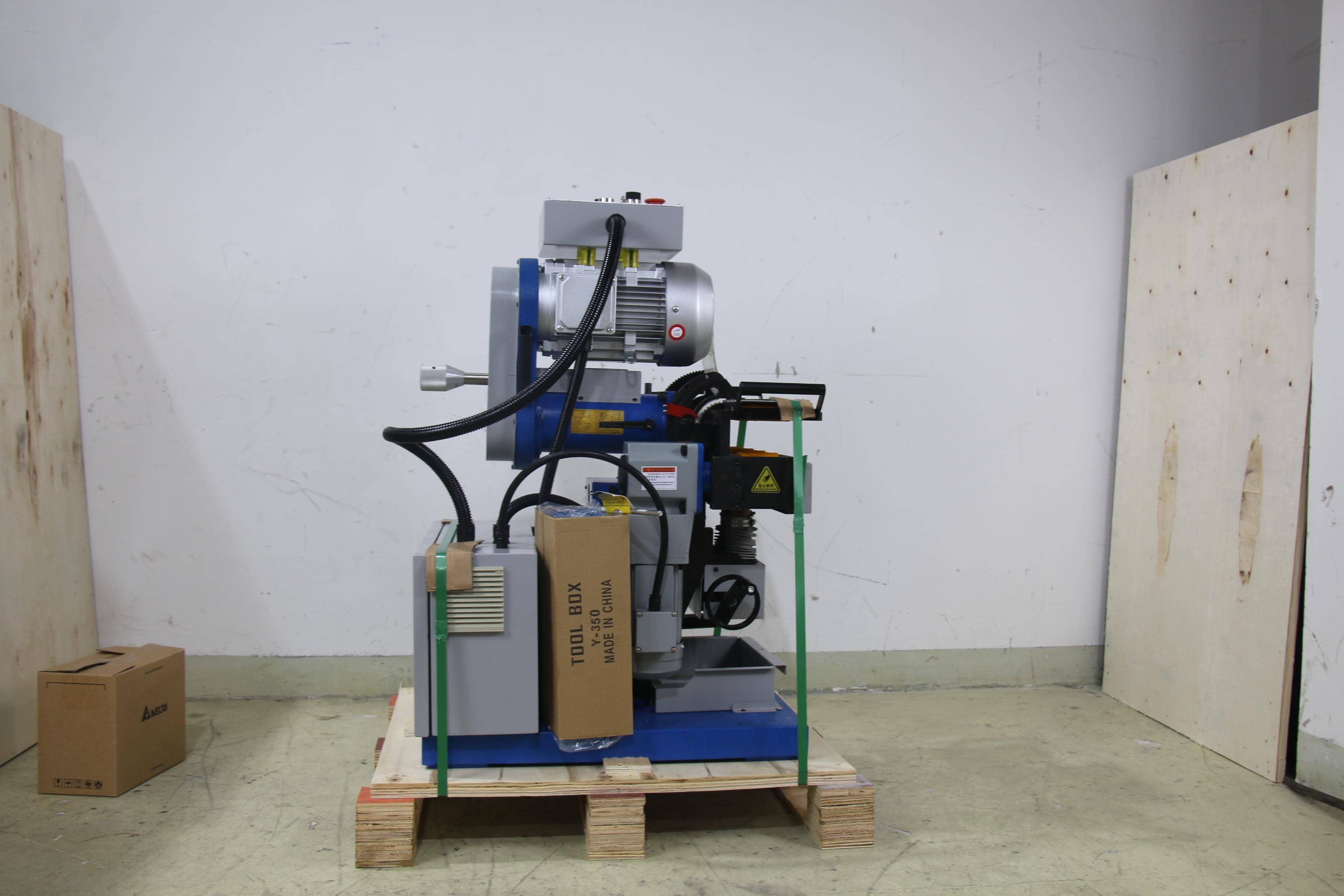

    GMMA-60S plate edge beveler standard packinglist and wooden cases packaging.

    Note: GMMA-60S plate beveler using market stadard milling heads diameter 63mm wtih 6 teeths and milling inserts


    Advantages for GMMA-60S plate edge beveler machine


    1) Automatic walking type beveling machine will walk along with plate edge for bevel cutting

    2) Beveling machines with universal wheels for easy moving and storage

    3) Cold cutting to aovid any oxide layer by using milling head and inserts for higher performance on surface Ra 3.2-6.3 . It can do welding directly after bevel cutting. Milling inserts are market standard.

    4) Wide working range for plate clamping thickness and bevel angels adjustable.

    5) Unique design with reducer setting behand more safe.

    6) Available for multi bevel joint type and easy operation.

    7) High efficiency beveling speed reach 0.4~1.2 meters per min.

    8) Automatic Clamping system and hand wheel setting for slight adjustment.

    Aplication for GMMA-60S plate edge beveler machine

    Plate beveling machine are widely applicated for all welding industry. Such as

    1) Steel Construction    2) Shipbuilding Industry   3) Pressure Vessels   4) Welding Manufacturing

    5) Construction Machinery & Metallurgy

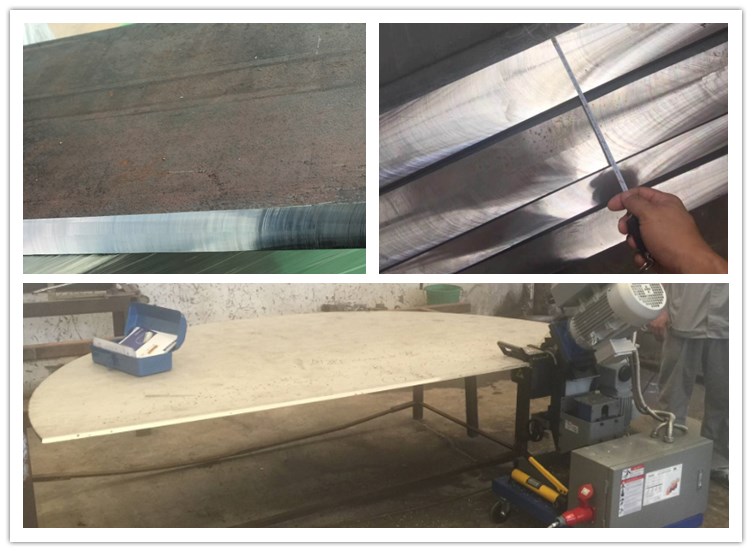

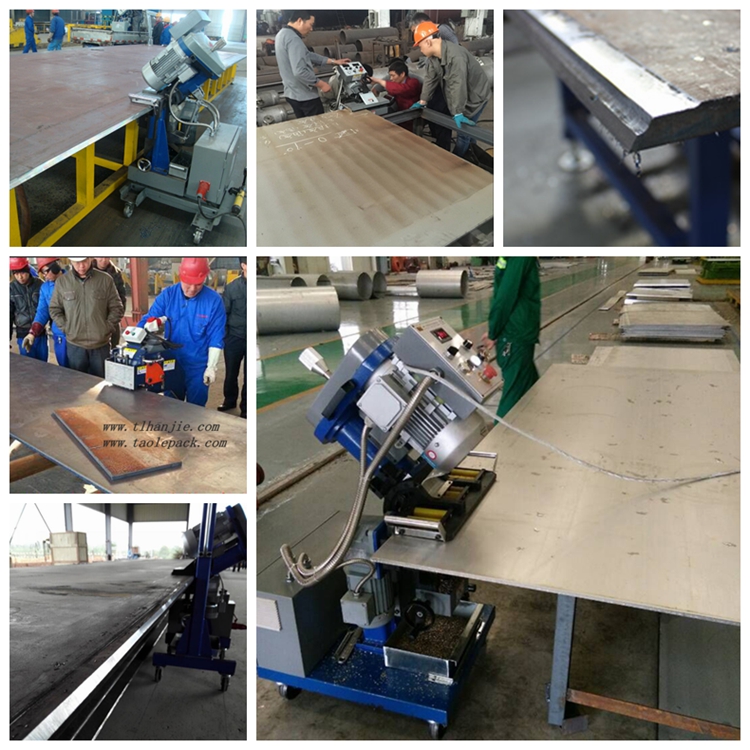

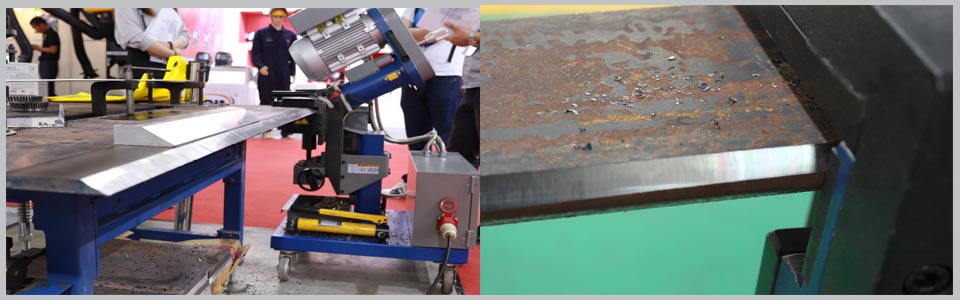

    Site performance picture for  reference by GMMA-60S plate edge beveler

    GMMA-60S is specially for small plates or low thickness plates on top bevel. Normally customer will facing options on GMMA-60S plate beveler and GMMA-60L plate beveler.

    1)  GMMA-60S for 6-60mm, bevel angel 0-60 degree,Max bevel width 45mm

    2) GMMA-60L for 6-60mm, bevel angel 0-90 degree, Max bevel width 60mm

    The Main different:  GMMA-60L beveling machine spindle adjustable to achieve bigger bevel width due to 0-90 degree, Available to change head for U /J bevel and 90 degree milling for transition bevel (L type bevel)
