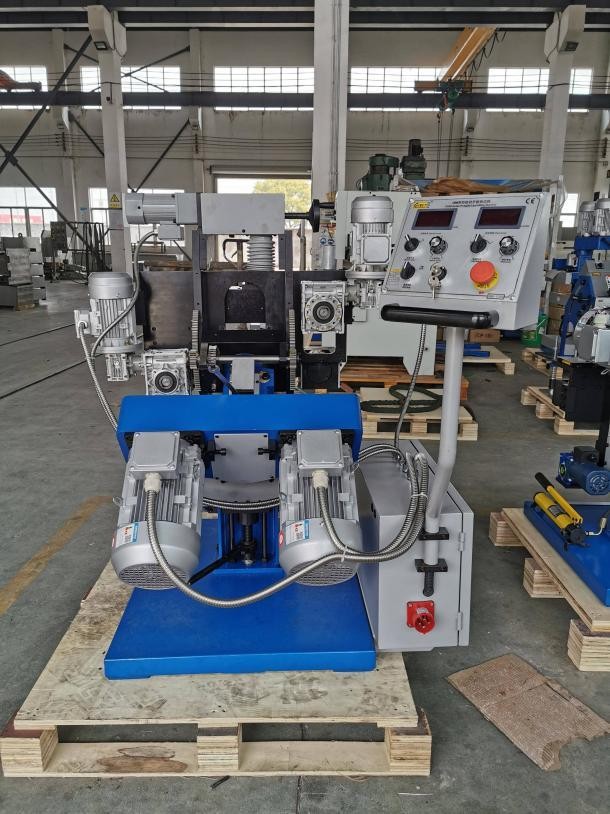

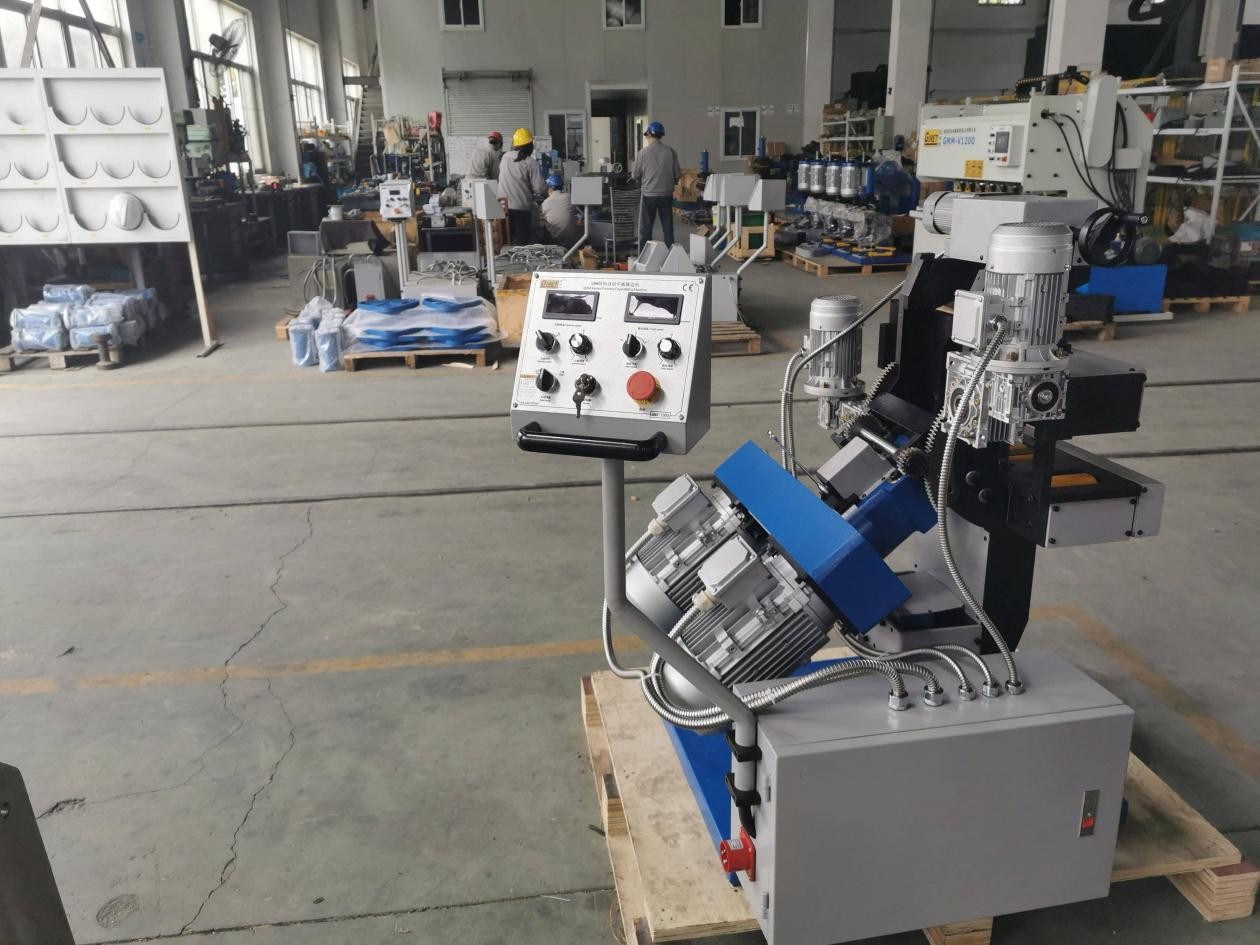

GMMA-100U metal bottom beveling machine from china manufacture
Short Description:
GMMA-100U metal bottom beveling machine for metal sheet edge beveling / milling /chamfering/ clad removing.
It is designed specially for bottom bevel for plate thickness 6-100mm, bevel angel 0 to -45 degree and max bevel width 45mm. Every single cut could be 30mm which is high efficiency for time and cost saving.
GMMA-100U metal bottom beveling machine from china manufacture
Metal plate edge beveling milling machine mainly to do bevel cutting or clad removal / clad stripping /edge chamfering on steel plates material like mild steel, stainless steel, aluminum steel,alloy titanium,hardox,duplex etc.It is widely used for welding industry for welding preperation.
GMMA-100U metal bottom beveling machine for metal sheet edge beveling / milling /chamfering/ clad removing.It is designed specially for bottom bevel for plate thickness 6-100mm, bevel angel 0 to -45 degree and max bevel width 45mm. Every single cut could be 30mm which is high efficiency for time and cost saving.
Parameters for GMMA-100U metal bottom beveling machine from china manufacture
| Models | GMMA-100U metal beveling machine |
| Power Suppy | AC 380V 50HZ |
| Total Power | 6480W |
| Spindle Speed | 500-1050mm/min |
| Feed Speed | 0~1500mm/min |
| Clamp Thickness | 6~100mm |
| Clamp Width | >100mm |
| Clamp Length | >300mm |
| Bevel Angel | 0~ -45 degree |
| Singel Bevel width | 15-30mm |
| Bevel Width | 0~ 45 mm |
| Cutter Diameter | Dia 100mm |
| Inserts QTY | 7 pcs |
| Worktable Height | 810-870mm |
| Suggest Table Height | 830mm |
| Worktable Size | 1200*1200mm |
| Clamping Way | Auto Clamping |
| Wheel Size | 4 Inch Heavy duty |
| Machine Height Adjust | Handwheel |
| Machine N.Weight | 430 kgs |
| Machine G Weight | 480 kgs |
| Wooden Case Size | 950*1180*1430mm |
GMMA-100U metal bottom beveling machine from china manufacture standard packinglist and wooden cases packaging
Note: GMMA-100U beveling machine using for standard milling heads diameter 100mm and milling inserts
 |
 |
Advantages for GMMA-100U metal bottom beveling machine from china manufacture
1) Automatic walking type beveling machine will walk along with plate edge for bevel cutting
2) Beveling machines with universal wheels for easy moving and storage
3) Cold cutting to aovid any oxide layer by using milling head and inserts for higher performance on surface Ra 3.2-6.3 . It can do welding directly after bevel cutting. Milling inserts are market standard.
4) Wide working range for plate clamping thickness and bevel angels adjustable.
5) Unique design with reducer setting behand more safe.
6) Available for multi bevel joint type and easy operation.
7) High efficiency beveling speed reach 0.4~1.2 meters per min.
8) Automatic Clamping system and hand wheel setting for slight adjustment.
Aplication for GMMA-100U metal bottom beveling machine from china manufacture
Plate beveling machine are widely applicated for all welding industry. Such as
1) Steel Construction 2) Shipbuilding Industry 3) Pressure Vessels 4) Welding Manufacturing
5) Construction Machinery & Metallurgy
GMMA-100U metal bottom beveling machine from china manufacture designed specially for bottom bevel. Customer normally will take below solution.
1) GMMA-100U beveling machine for bottom bevel, GMMA-100L beveling machine for top bevel
