GMMA-100L steel plate beveling machine designed specially for heavy duty plates which is highly required for plate welding industry. It is available for plate thickness 6-100mm bevel angel from 0 to 90 degree. High efficiency to achieve bevel width up to 100mm.


  • Model No.: GMMA-100L
  • Plate Thickness: 6-100mm
  • Bevel Angel: 0-90 degree
  • Bevel Width: 0-100mm
  • Brand: TAOLE
  • Place of Origin: Shanghai,China
  • Delivery Date: 5-12 days
  • Packaging: Wooden Case Pallet
  • Product Detail

    Product Tags

    We normally believe that one’s character decides products’ quality, the details decides products’ high-quality ,while using the REALISTIC,EFFICIENT AND INNOVATIVE staff spirit for Factory Selling China Best Electric Motor Flange Type Driven Screw Jack, Motor Self-Contained Worm Gear Driven Screw Jacks Manufacturers, We’re going to continually strive to improve our provider and give the very best high quality products and solutions with aggressive charges. Any inquiry or comment is really appreciated. Please get hold of us freely.
    We normally believe that one’s character decides products’ quality, the details decides products’ high-quality ,while using the REALISTIC,EFFICIENT AND INNOVATIVE staff spirit for China DC Electric Jack Screws, Helical Gear Reduction Motor Operated Screw Jack, We’ll continue to devote ourselves to market & product development and build a well-knit service to our customer to create a more prosperous future. Please contact us today to find out how we can work together.
    Introduction for GMMA-100L heavy duty plate beveling machine

    Metal sheet edge beveling machine mainly to do bevel cutting or clad removal / clad stripping on steel plates material like mild steel, stainless steel, aluminum steel,alloy titanium,hardox,duplex etc. GMMA-100L heavy duty plate beveling machine with 2 milling heads , plate thickness from 6 to 100mm, bevel angel from 0 to 90 degree adjutable. GMMA-100L can make 30mm per cut. 3-4 cuts to achieve bevel width 100mm which is high efficiency and helps a lot for saving time and cost.

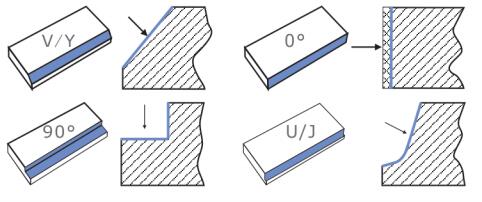

    GMMA-100L heavy duty plate beveling mahine available for multi bevel joint as below

    https://www.bevellingmachines.com/products/gmma-plate-edge-milling-machine/ https://www.bevellingmachines.com/products/gmma-plate-edge-milling-machine/



    Parameters for GMMA-100L heavy duty plate beveling machine

    Models GMMA-100L heavy duty plate beveling machine
    Power Suppy AC 380V 50HZ
    Total Power 6520W
    Spindle Speed 500-1050mm/min
    Feed Speed 0~1500mm/min
    Clamp Thickness 6~100mm
    Clamp Width >100mm
    Clamp Length >300mm
    Bevel Angel 0~90 degree
    Singel Bevel width 15-30mm
    Bevel Width 0-100mm
    Cutter Diameter Dia 100mm
    Inserts QTY 7 pcs/9pcs
    Worktable Height 810-870mm
    Suggest Table Height 830mm
    Worktable Size 1200*1200mm
    Clamping Way Auto Clamping
    Wheel Size 4 Inch Heavy duty
    Machine Height Adjust Handwheel
    Machine N.Weight 420 kgs
    Machine G Weight 480 kgs
    Wooden Case Size 950*1180*1430mm

    GMMA-100L heavy duty plate beveling machine standard packing list and wooden cases packing

    Note: GMMA-100L with optional cutter head 7 teeth or 9 teeth.

    https://www.bevellingmachines.com/products/gmma-plate-edge-milling-machine/ https://www.bevellingmachines.com/products/gmma-plate-edge-milling-machine/



    Advantages for GMMA-100L heavy duty plate beveling machine

    1) Automatic walking type beveling machine will walk along with plate edge for bevel cutting

    2) Beveling machines with universal wheels for easy moving and storage (Heavy duty wheels for heavy duty plates)

    3) Cold cutting to aovid any oxide layer by using milling head and inserts for higher performance on surface Ra 3.2-6.3 . It can do welding directly after bevel cutting. Milling inserts are market standard.

    4) Wide working range for plate clamping thickness and bevel angels adjustable.

    5) Unique design with reducer setting behand more safe.

    6) Available for multi bevel joint type and easy operation.

    7) High efficiency beveling speed reach 0.4~1.2 meters per min.

    8) Automatic Clamping system and hand wheel setting for slight adjustment.

    https://www.bevellingmachines.com/products/gmma-plate-edge-milling-machine/



    Application for GMMA-100L heavy duty plate beveling machine

    Plate beveling machine are widely applicated for all welding industry. Such as

    1) Steel Construction    2) Shipbuilding Industry   3) Pressure Vessels   4) Welding Manufacturing

    5) Construction Machinery & Metallurgy

    https://www.bevellingmachines.com/products/gmma-plate-edge-milling-machine/

    https://www.bevellingmachines.com/products/gmma-plate-edge-milling-machine/ https://www.bevellingmachines.com/products/gmma-plate-edge-milling-machine/



    Surface Performace after bevel cutting by GMMA-100L heavy duty steel plate beveling machine.

    Note:  It is mainly work for top bevel which can achieve a big bevel width upto 100mm. Normally it could be a conbination solution with GMMA-80R or GMMA-100U beveling machine. It can also be modified to plate thickness up to 120mm, 160mm and 200mm.
