China New Product China Small Removable Edge Milling Machine for Steel Structure Production Line
Short Description:
GMMA-80A beveling machine with 2 motors for plate thickness 6-80mm, bevel angel 0-60 degree, Max width could reach 70mm. It is automatic waling along with plate edge and speed adjutable. Rubber Roller for plate feeding avaible for both small plate and big plates. Widely used for carbon steel , stainless steel and alloy steel metal sheets for welding preperation.
With dependable high quality approach, great reputation and excellent customer support, the series of products and solutions produced by our firm are exported to lots of countries and regions for China New Product China Small Removable Edge Milling Machine for Steel Structure Production Line, We put genuine and health as the primary responsibility. Now we have a professional international trade crew which graduated from America. We’ve been your next enterprise partner.
With dependable high quality approach, great reputation and excellent customer support, the series of products and solutions produced by our firm are exported to lots of countries and regions for china milling machine, Plate milling machine, “Good quality, Good service ” is always our tenet and credo. We take every effort to control the quality, package, labels etc and our QC will check every detail during producing and before shipment. We have been willing to establish long business relationship with all those who seek the high quality products and good service. We’ve got set up a wide sales network across European countries, North of America, South of America, Middle East, Africa, East Asia countries.Please contact us now, you will find our expert experience and high quality grades will contribute to your business.
Introduction for GMMA-80A High Efficiency stainless steel plate beveling machine
Metal plate edge beveling machine mainly to do bevel cutting or clad removal / clad stripping on steel plates material like mild steel, stainless steel, aluminum steel,alloy titanium,hardox,duplex etc.It is widely used for welding industry for welding preperation.
GMMA-80A High Efficiency stainless steel plate beveling machine with 2 milling heads, Plate thickness from 6 to 80mm, bevel angel from 0 to 60 degree adjustable, automatic walking along with plate edge, Rubber Roller for plate feeding and walking, Easy operation with auto clamping system. Max bevel width could reach 70mm. Widly used for Carbon Steel plates, stainless steel plates and alloy steel plates beveling with high efficiency for saving cost and time.
GMMA-80A high efficiency stainless steel plate beveling machine bevel joint and superiority
 |
 |
Parameters for GMMA-80A high efficiency stainless steel plate beveling machine
| Models | GMMA-80A high efficiency stainless steel plate beveling machine |
| Power Suppy | AC 380V 50HZ |
| Total Power | 4920W |
| Spindle Speed | 500~1050r/min |
| Feed Speed | 0~1500mm/min |
| Clamp Thickness | 6~80mm |
| Clamp Width | >80mm |
| Clamp Length | >300mm |
| Bevel Angel | 0~60 degree |
| Singel Bevel width | 0-20mm |
| Bevel Width | 0-70mm |
| Cutter Diameter | Dia 80mm |
| Inserts QTY | 6 pcs |
| Worktable Height | 700-760mm |
| Suggest Table Height | 730mm |
| Worktable Size | 800*800mm |
| Clamping Way | Auto Clamping |
| Wheel Size | 4 Inch STD |
| Machine Height Adjust | Hydraulic |
| Machine N.Weight | 245 kgs |
| Machine G Weight | 280 kgs |
| Wooden Case Size | 800*690*1140mm |
GMMA-80A efficiency stainless steel plate beveling machine standard packinglist and wooden cases packing.
Note: Machines is using milling head diameter 80mm with 6 teeths.
 |
 |
Advantages for GMMA-80A High Efficiency Stainless Steel Plate Beveling Machine
1) Automatic walking type beveling machine will walk along with plate edge for bevel cutting
2) Beveling machines with universal wheels for easy moving and storage
3) Cold cutting to aovid any oxide layer by using milling head and inserts for higher performance on surface Ra 3.2-6.3 . It can do welding directly after bevel cutting. Milling inserts are market standard.
4) Wide working range for plate clamping thickness and bevel angels adjustable.
5) Unique design with reducer setting behand more safe.
6) Available for multi bevel joint type and easy operation.
7) High efficiency beveling speed reach 0.4~1.2 meters per min.
8) Automatic Clamping system and hand wheel setting for slight adjustment.
Appliation for GMMA-80A high efficiency stainless steel plate beveling machine
Plate beveling machine are widely applicated for all welding industry. Such as
1) Steel Construction 2) Shipbuilding Industry 3) Pressure Vessels 4) Welding Manufacturing
5) Construction Machinery & Metallurgy
 |
 |

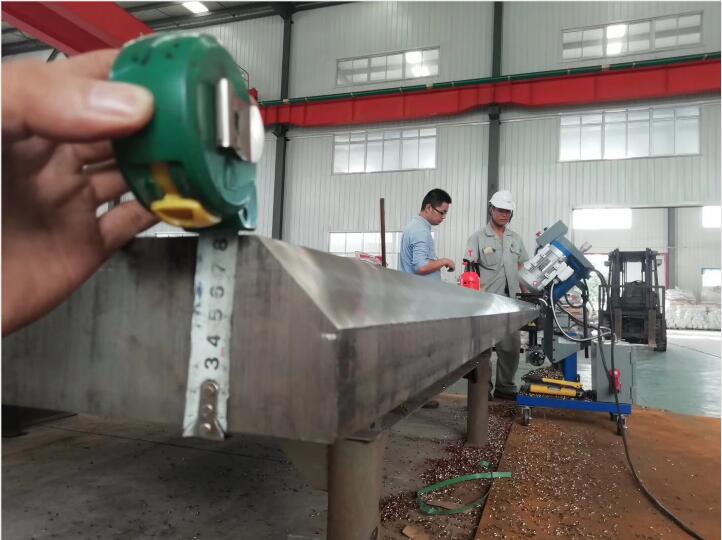

Bevel Surface performance after bevel cutting by GMMA-80A stainless steel plate beveling machine
GMMA-80A model with 2 models and wide working range widely used for pressure vessels, shipbuilding and custruction macihnery industries. Plate thickness upto 80mm. Mainly for top bevel cutting. Normally will be conbination solution with GMMA-80R. So below solutions for double side beveling.
1) GMMA-80A plate beveler for Top bevel and GMMA-80R plate beveler for buttom bevel
2) GMMA-80A plate beveler for top bevel and GMMA-60R plate beveler for buttom bevel
3) GMMA-80A plate beveler for top bevel and GMMA-60U plate beveler for buttom bevel
 |
 |
